360kW Heat Pump Chiller
360kW Heat Pump Chiller
360kW Heat Pump Chiller
360kW Heat Pump Chiller
360kW Heat Pump Chiller
360kW Heat Pump Chiller
360kW Heat Pump Chiller
360kW Heat Pump Chiller

400V 3-phase 50Hz busbar (hardwired) connection

360kW Heat Pump Chiller

Weight

4750kg

Dimensions (LxWxH)

4745mm × 2400mm × 2605mm

  • Rated 4.9/5 Stars on Feefo
  • Rapid Delivery & Installation
  • REFCOM F-Gas Certified
  • Highly Efficient Equipment
  • Brand New Equipment
  • 24/7/365 Support
  • Free Service Recovery Report
  • Free, No Obligation Estimate
Request Chiller Specifications

Chiller description

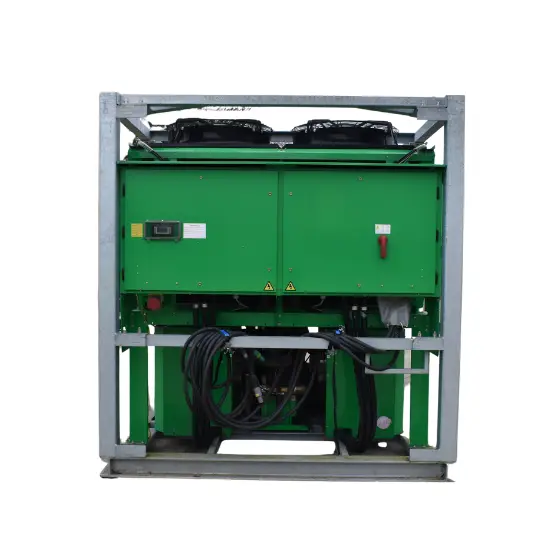

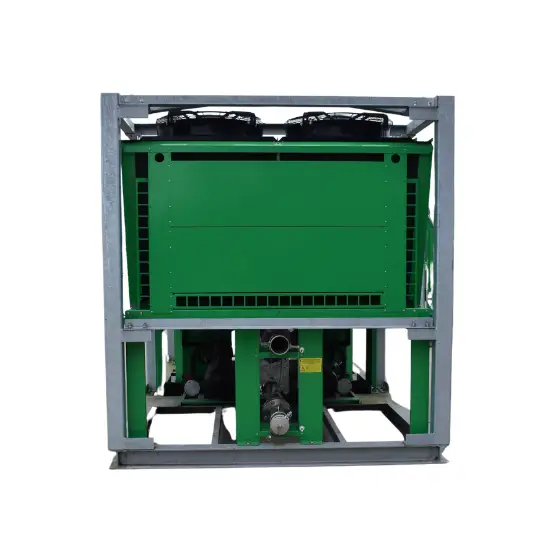

The Rapid Energy 360kW Air Cooled Heat Pump Chiller provides reliable heating and cooling for commercial, industrial, and HVAC applications. Designed as a self-contained unit with dual refrigeration circuits, it delivers energy-efficient performance across a wide operating temperature range.

Capable of providing 360kW of cooling at 7°C LWT and 35°C ambient, and 361kW of heating at 45°C LWT and 7°C ambient. Its user-friendly controller allows easy switching between heating and cooling modes with adjustable setpoint temperatures.

This plug-and-play chiller features quick fluid and power connections for fast installation and commissioning. The control system can also integrate with onsite Building Management Systems, with options for local or remote monitoring.

Perfect for temporary or emergency HVAC requirements, the unit can operate as a stand-alone chiller or as part of a complete system when combined with Rapid Energy temperature control ancillaries.

As a full turnkey hire solution, we offer complete services from surveying to commissioning a temporary chiller. Our team of engineers and project managers become an extension of your team and project.

With nationwide coverage in England, Scotland, and Wales, we provide 24/7 support throughout the duration of your hire. Hire with confidence by calling us today or requesting a call back through our short form below.

Request chiller

0800 464 7025

Available 24/7

  • I would like Rapid Energy to contact me as below. I acknowledge that I may withdraw my consent or unsubscribe at any time and that you will not pass my details to anyone. By clicking the Ok button I agree to the privacy policy

Heat Pump Chiller Hire Process

What our customers say

Specifications

Cooling Capacity
360kW

Cooling LWT
7°C

Cooling Ambient
35°C

Heating Capacity
361kW

Heating LWT
45°C

Heating Ambient
7°C

Refrigerant Type
R410A

Refrigerant GWP
2088

Fluid Connection
4” Cam-lock

Operating Range – Ambient (Max/Min)
45°C / -15°C

Fluid Flow Rate (Design)
1026lpm

Fluid Pressure Drop (Design)
40.1kPa

Max Fluid Operating Pressure
1000kPa

Min/Max Outlet Fluid Temp (Cooling Mode)
-12°C / 18°C

Min/Max Outlet Fluid Temp (Heating Mode)
30°C / 50°C

Power Supply
400V / 3 / 50Hz

Absorbed Power (Max)
178kW

Current (FLA)
317amps

Start Up Current (Max)
643amps

Power Connection
Bus Bar

Main Unit Dimensions (L × W × H)
4745mm × 2400mm × 2605mm

Unit Weight (Operating)
4750kg

Noise Rating Std (Sound Power Level)
95dB(A)
