BS4343 (IEC 60309) 230V 3-pin 16A

50kW Air Handling Unit

Weight

750kg

Dimensions (LxWxH)

1710mm × 790mm × 2340mm

Rated 4.9/5 Stars on Feefo
Rapid Delivery & Installation
REFCOM F-Gas Certified
Highly Efficient Equipment

Brand New Equipment
24/7/365 Support
Free Service Recovery Report
Free, No Obligation Estimate

Request Air Handling Units Specifications

Air handling units description

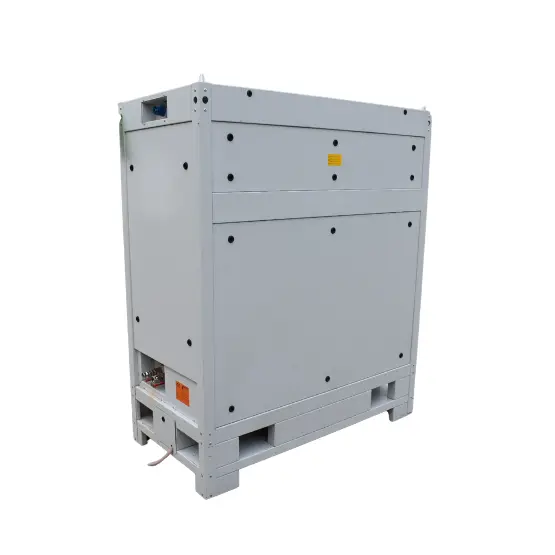

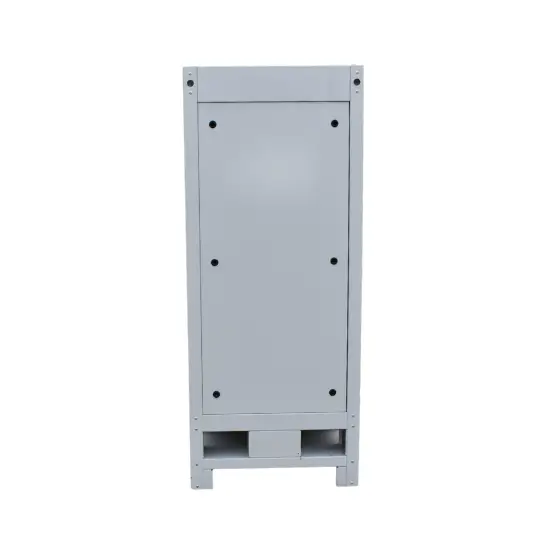

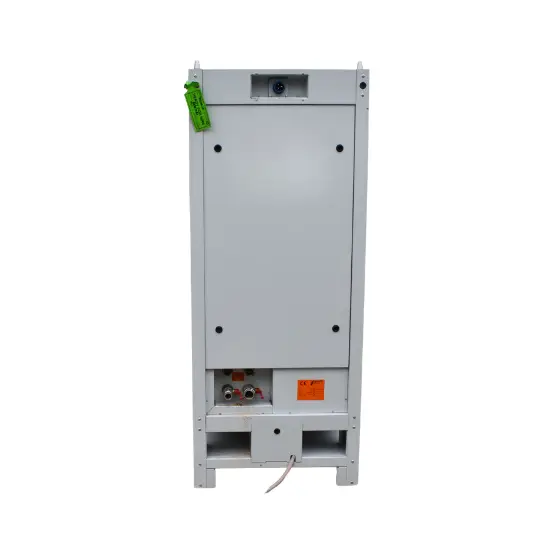

The Rapid Energy 50kW Air Handler Unit (AHU) provides efficient heating and cooling for commercial, industrial, and temporary HVAC applications. Designed for flexibility and quick deployment, it delivers reliable air temperature control across a wide operating range.

The unit can provide 61kW of cooling (33kW sensible) and up to 110kW of heating, making it suitable for maintaining controlled conditions in buildings, production spaces, and temporary environments.

Operating with chilled water or low temperature hot water, this AHU offers energy-efficient performance with strong airflow. A user-friendly controller allows easy adjustment of heating or cooling modes and temperature setpoints, while optional BMS connectivity enables local or remote monitoring.

With plug-and-play fluid and power connections, the unit can be installed quickly and used as a stand-alone system or alongside Rapid Energy chillers, boilers, and ancillary equipment to create a complete temporary heating or cooling solution.

As a full turnkey hire solution, we provide support from survey through to commissioning, backed by nationwide coverage and 24/7 technical support throughout your hire period.

Request air handling units

0800 464 7025

Available 24/7

First name*
Last name*
Company*
Delivery address post code
Phone*
Email*
Air handling units capacity
I would like Rapid Energy to contact me as below. I acknowledge that I may withdraw my consent or unsubscribe at any time and that you will not pass my details to anyone. By clicking the Ok button I agree to the privacy policy
Phone
Phone: I would like Rapid Energy to call me provide me with more information or a quotation.
Email me
Email: I would like Rapid Energy to email me to provide me with more information or a quotation.
Marketing Preferences
Newsletter: I would like to receive Rapid Energy’s newsletter by email with information and offers.

Air Handling Unit Hire Process

Information & Specification

In order to provide you with a quote for the 50kW Air Handling Unit, we need to obtain some information from you first. This includes the hire duration and delivery address. If you require an air handling unit urgently, please call us on 0800 464 7025 so that we can react as quickly as possible.

Quote Approval

Now that we have the information we need, we can prepare a quote for you to review and approve. Once the quote is approved, we can begin preparing and briefing our dispatch team and engineers.

Installation and Commissioning

Your 50kW Air Handling Unit is on its way. Our engineers will ensure your chiller is installed and commissioned.

Information & Specification

Quote Approval

Now that we have the information we need, we can prepare a quote for you to review and approve. Once the quote is approved, we can begin preparing and briefing our dispatch team and engineers.

Installation and Commissioning

Your 50kW Air Handling Unit is on its way. Our engineers will ensure your chiller is installed and commissioned.

What our customers say

Specifications

Cooling Capacity
61kW

Sensible Cooling
33kW

Heating Capacity
110kW

Fluid Inlet/Outlet Temp (Cooling)
6 / 12°C

Fluid Inlet/Outlet Temp (Heating)
50 / 40°C

Fluid Connection
1” Cam-lock

Air Outlets
Diffuser Box (Top mounted)

Operating Range - Ambient Max/Min
60°C / -20°C

Volume Air Flow Rate (Design)
7,500 m³/hr

Volume Air Flow Rate (Max)
11,000 m³/hr

External Static Pressure (Design)
200PA

Coil Air Filter Grade
G4

Power Supply
230V / 1 / 50Hz

Absorbed Power (Max)
2.319kW

Current (FLA)
11amps

Start Up Current (Max)
0-100% VSD

Power Connection
16amp Cee Form

Main Unit Dimensions (L × W × H)
1710mm × 790mm × 2340mm

Unit Weight (Operating)
750kg

Noise Rating Std (Sound Power Level)
81dB(A)
